StarFive VisionFive 2 Lite - U-boot and Kernel with external GPU ATI Radeon R9 290

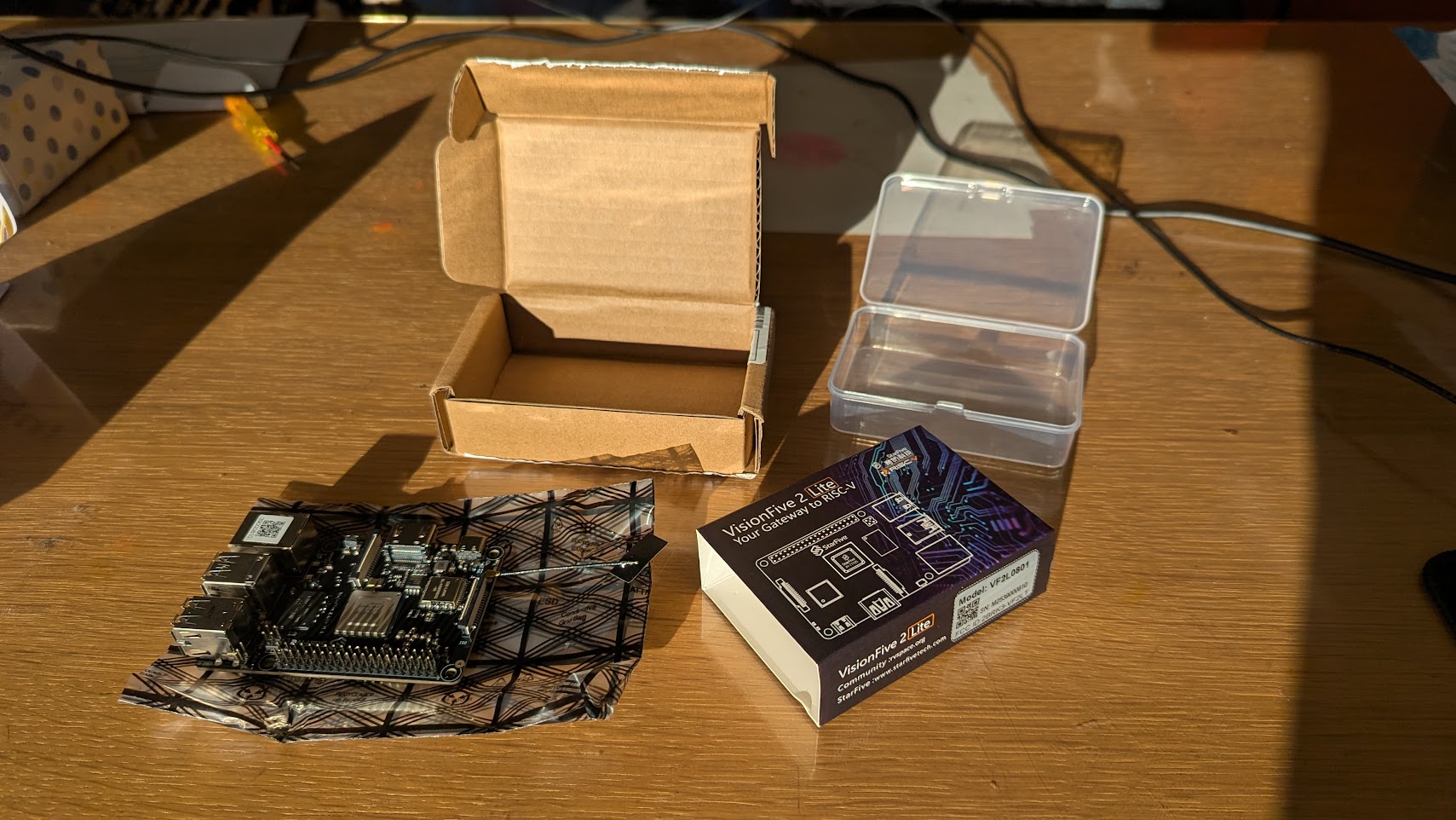

Where is a new Lite edition of the StarFive VisionFive 2. It is the StarFive VisionFive 2 Lite. The form factor is a little bit smaller clock speeds is a bit lower, but almost the same. It is now only or SD-card or eMMC (soldered) but we have now Bluetooth and WiFi.


The u-boot and kernel patch is already on the way. Just like the StarFive VisionFive 2 (not Lite) is the GPU still not in de mainline kernel, but the rest is working.

So if you don’t want to run a vender Linux kernel/distro, you can run a mainline kernel with a patch and a normal rootfs from a distribution that already support RISC-V.

I am on Fedora 43, and needed to install some missing packages (new laptop)

sudo dnf install openssl-devel-engine swig gcc-c++-riscv64-linux-gnu gcc-c++ libmpc-devel gcc-plugin-devel git openal-soft-devel ncurses-devel flex bison gnutls-devel screen

Building OpenSBI

v1.7 of OpenSBI has already support for the StarFive VisionFive 2 Lite.

git clone --branch v1.7 --depth=1 https://github.com/riscv-software-src/opensbi.git
cd opensbi
make CROSS_COMPILE=riscv64-linux-gnu- PLATFORM=generic FW_OPTIONS=0 FW_TEXT_START=0x40000000

Building U-Boot

We first get the u-boot code. We do not need al the history, so we add depth 1.

git clone --branch v2026.01-rc3 --depth=1 https://github.com/u-boot/u-boot.git

and apply this patch

The website is very slow (timeouts) so i already downloaded the patch Re-PATCH-v1-2-9-riscv-dts-starfive-Add-VisionFive-2-Lite-board-device-tree.mbox

The patch is not working 100%, so we need to fix some stuff. That is why i use the reject option with git.

cd u-boot
wget https://raw.githubusercontent.com/Opvolger/ansible-riscv-sd-card-creater/refs/heads/master/files/jh7110-lite/Re-PATCH-v1-2-9-riscv-dts-starfive-Add-VisionFive-2-Lite-board-device-tree.mbox
git apply --reject --whitespace=fix Re-PATCH-v1-2-9-riscv-dts-starfive-Add-VisionFive-2-Lite-board-device-tree.mbox

You will see that some patches are rejected:

Checking patch dts/upstream/src/riscv/starfive/jh7110-common.dtsi...
error: while searching for:
        assigned-clock-rates = <50000000>;
        bus-width = <8>;
        bootph-pre-ram;
        cap-mmc-highspeed;
        mmc-ddr-1_8v;
        mmc-hs200-1_8v;
        cap-mmc-hw-reset;
        post-power-on-delay-ms = <200>;
        pinctrl-names = "default";
        pinctrl-0 = <&mmc0_pins>;
        vmmc-supply = <&vcc_3v3>;
        vqmmc-supply = <&emmc_vdd>;
        status = "okay";
};


error: patch failed: dts/upstream/src/riscv/starfive/jh7110-common.dtsi:281
error: while searching for:
        assigned-clock-rates = <50000000>;
        bus-width = <4>;
        bootph-pre-ram;
        no-sdio;
        no-mmc;
        cd-gpios = <&sysgpio 41 GPIO_ACTIVE_LOW>;
        disable-wp;
        cap-sd-highspeed;
        post-power-on-delay-ms = <200>;
        pinctrl-names = "default";
        pinctrl-0 = <&mmc1_pins>;
        status = "okay";

error: patch failed: dts/upstream/src/riscv/starfive/jh7110-common.dtsi:299
Hunk #3 succeeded at 444 (offset 7 lines).
Checking patch dts/upstream/src/riscv/starfive/jh7110-deepcomputing-fml13v01.dts...
Checking patch dts/upstream/src/riscv/starfive/jh7110-milkv-mars.dts...
Checking patch dts/upstream/src/riscv/starfive/jh7110-pine64-star64.dts...
Checking patch dts/upstream/src/riscv/starfive/jh7110-starfive-visionfive-2.dtsi...
Checking patch dts/upstream/src/riscv/starfive/jh7110.dtsi...
Hunk #1 succeeded at 205 (offset 5 lines).
Checking patch arch/riscv/include/asm/arch-jh7110/eeprom.h...
error: while searching for:

#include <linux/types.h>

u8 get_pcb_revision_from_eeprom(void);

/**

error: patch failed: arch/riscv/include/asm/arch-jh7110/eeprom.h:9
Checking patch board/starfive/visionfive2/visionfive2-i2c-eeprom.c...
error: while searching for:
        return 0;
}

/**
 * get_pcb_revision_from_eeprom - get the PCB revision
 *
 * 1.2A return 'A'/'a', 1.3B return 'B'/'b',other values are illegal
 */
u8 get_pcb_revision_from_eeprom(void)
{
        u8 pv = 0xFF;

        if (read_eeprom())
                return pv;

        return pbuf.eeprom.atom1.data.pstr[6];
}

u8 get_ddr_size_from_eeprom(void)

error: patch failed: board/starfive/visionfive2/visionfive2-i2c-eeprom.c:535
Checking patch configs/starfive_visionfive2_defconfig...
error: while searching for:
CONFIG_CMD_BOOTSTAGE=y
CONFIG_OF_BOARD=y
CONFIG_DEVICE_TREE_INCLUDES="starfive-visionfive2-u-boot.dtsi"
CONFIG_OF_LIST="starfive/jh7110-deepcomputing-fml13v01 starfive/jh7110-milkv-mars starfive/jh7110-pine64-star64 starfive/jh7110-starfive-visionfive-2-v1.2a starfive/jh7110-starfive-visionfive-2-v1.3b"
CONFIG_MULTI_DTB_FIT=y
CONFIG_ENV_OVERWRITE=y
CONFIG_ENV_IS_IN_SPI_FLASH=y

error: patch failed: configs/starfive_visionfive2_defconfig:79
Checking patch dts/upstream/src/riscv/starfive/jh7110s-starfive-visionfive-2-lite.dts...
Checking patch board/starfive/visionfive2/visionfive2-i2c-eeprom.c...
Hunk #7 succeeded at 633 (offset 18 lines).
Checking patch drivers/pci/pcie_starfive_jh7110.c...
Checking patch board/starfive/visionfive2/spl.c...
Hunk #1 succeeded at 140 (offset 8 lines).
Checking patch board/starfive/visionfive2/starfive_visionfive2.c...
Hunk #1 succeeded at 69 (offset 6 lines).
Checking patch arch/riscv/cpu/jh7110/spl.c...
Checking patch arch/riscv/include/asm/arch-jh7110/eeprom.h...
Checking patch board/starfive/visionfive2/visionfive2-i2c-eeprom.c...
Hunk #1 succeeded at 580 (offset 30 lines).
Applying patch dts/upstream/src/riscv/starfive/jh7110-common.dtsi with 2 rejects...
Rejected hunk #1.
Rejected hunk #2.
Hunk #3 applied cleanly.
Applied patch dts/upstream/src/riscv/starfive/jh7110-deepcomputing-fml13v01.dts cleanly.
Applied patch dts/upstream/src/riscv/starfive/jh7110-milkv-mars.dts cleanly.
Applied patch dts/upstream/src/riscv/starfive/jh7110-pine64-star64.dts cleanly.
Applied patch dts/upstream/src/riscv/starfive/jh7110-starfive-visionfive-2.dtsi cleanly.
Applied patch dts/upstream/src/riscv/starfive/jh7110.dtsi cleanly.
Applying patch arch/riscv/include/asm/arch-jh7110/eeprom.h with 1 reject...
Rejected hunk #1.
Applying patch board/starfive/visionfive2/visionfive2-i2c-eeprom.c with 1 reject...
Rejected hunk #1.
Applying patch configs/starfive_visionfive2_defconfig with 1 reject...
Rejected hunk #1.
Applied patch dts/upstream/src/riscv/starfive/jh7110s-starfive-visionfive-2-lite.dts cleanly.
Applied patch board/starfive/visionfive2/visionfive2-i2c-eeprom.c cleanly.
Applied patch drivers/pci/pcie_starfive_jh7110.c cleanly.
Applied patch board/starfive/visionfive2/spl.c cleanly.
Applied patch board/starfive/visionfive2/starfive_visionfive2.c cleanly.
Applied patch arch/riscv/cpu/jh7110/spl.c cleanly.
Applied patch arch/riscv/include/asm/arch-jh7110/eeprom.h cleanly.
Applied patch board/starfive/visionfive2/visionfive2-i2c-eeprom.c cleanly.

All the patches that didn’t work are saved in *.rej files. We need to see what we need to fix. Lines that where added have a ‘+’ sign what is deleted have - sign.

You can see that this is removed in the reject file dts/upstream/src/riscv/starfive/jh7110-common.dtsi.rej, but some thinks are already changed.

We will fix that. Open dts/upstream/src/riscv/starfive/jh7110-common.dtsi and change (from line 278)

&mmc0 {
    max-frequency = <100000000>;
    assigned-clocks = <&syscrg JH7110_SYSCLK_SDIO0_SDCARD>;
    assigned-clock-rates = <50000000>;
    bus-width = <8>;
    bootph-pre-ram;
    cap-mmc-highspeed;
    mmc-ddr-1_8v;
    mmc-hs200-1_8v;
    cap-mmc-hw-reset;
    pinctrl-names = "default";
    pinctrl-0 = <&mmc0_pins>;
    vmmc-supply = <&vcc_3v3>;
    vqmmc-supply = <&emmc_vdd>;
    status = "okay";
};

&mmc1 {
    max-frequency = <100000000>;
    assigned-clocks = <&syscrg JH7110_SYSCLK_SDIO1_SDCARD>;
    assigned-clock-rates = <50000000>;
    bus-width = <4>;
    bootph-pre-ram;
    cd-gpios = <&sysgpio 41 GPIO_ACTIVE_LOW>;
    disable-wp;
    cap-sd-highspeed;
    pinctrl-names = "default";
    pinctrl-0 = <&mmc1_pins>;
    status = "okay";
};

to

&mmc0 {
    max-frequency = <100000000>;
    assigned-clocks = <&syscrg JH7110_SYSCLK_SDIO0_SDCARD>;
    assigned-clock-rates = <50000000>;
    bus-width = <8>;
    bootph-pre-ram;
    pinctrl-names = "default";
    pinctrl-0 = <&mmc0_pins>;
    status = "okay";
};

&mmc1 {
    max-frequency = <100000000>;
    assigned-clocks = <&syscrg JH7110_SYSCLK_SDIO1_SDCARD>;
    assigned-clock-rates = <50000000>;
    bus-width = <4>;
    bootph-pre-ram;
    cap-sd-highspeed;
    pinctrl-names = "default";
    pinctrl-0 = <&mmc1_pins>;
    status = "okay";
};

In configs/starfive_visionfive2_defconfig.rej you can see that adding the new board to the CONFIG_OF_LIST didn’t work. Other board are already added or changed from name!

So edit configs/starfive_visionfive2_defconfig and change the line

CONFIG_OF_LIST="starfive/jh7110-deepcomputing-fml13v01 starfive/jh7110-milkv-mars starfive/jh7110-milkv-marscm-emmc starfive/jh7110-milkv-marscm-lite starfive/jh7110-pine64-star64 starfive/jh7110-starfive-visionfive-2-v1.2a starfive/jh7110-starfive-visionfive-2-v1.3b"

to

CONFIG_OF_LIST="starfive/jh7110-deepcomputing-fml13v01 starfive/jh7110-milkv-mars starfive/jh7110-milkv-marscm-emmc starfive/jh7110-milkv-marscm-lite starfive/jh7110-pine64-star64 starfive/jh7110-starfive-visionfive-2-v1.2a starfive/jh7110-starfive-visionfive-2-v1.3b starfive/jh7110s-starfive-visionfive-2-lite"

If we open arch/riscv/include/asm/arch-jh7110/eeprom.h.rej we see that only comment was added. so we ignore this rejected patch.

Now the last *.rej file board/starfive/visionfive2/visionfive2-i2c-eeprom.c.rej

We have to edit board/starfive/visionfive2/visionfive2-i2c-eeprom.c from line 543

change

u8 get_pcb_revision_from_eeprom(void)
{
    u8 pv = 0xFF;

    if (read_eeprom())
        return pv;

    return pbuf.eeprom.atom1.data.pstr[6];
}

to

u8 get_pcb_revision_from_eeprom(void)
{
    if (read_eeprom())
        return 0;

    return pbuf.eeprom.atom4.data.pcb_revision;
}

Now we can build it! We have patch the patch!

make CROSS_COMPILE=riscv64-linux-gnu- starfive_visionfive2_defconfig
# if you want to use the PCIe interface for something different then NVMe drive. Disable the PCI in U-Boot.
sed -i -e 's/CONFIG_PCI_INIT_R=y/CONFIG_CMD_PCI=n/g' .config
sed -i -e 's/CONFIG_PCI_INIT_R=y/CONFIG_PCI_INIT_R=n/g' .config
sed -i -e 's/PCI_INIT_R=y/PCI_INIT_R=n/g' .config
make CROSS_COMPILE=riscv64-linux-gnu- OPENSBI=../opensbi/build/platform/generic/firmware/fw_payload.bin CONFIG_DEFAULT_FDT_FILE=starfive/jh7110s-starfive-visionfive-2-lite.dtb

On the question Enumerate PCI buses during init (PCI_INIT_R) [N/y/?] (NEW) hit Enter.

Done, it is build!

Kernel 6.18 with a patch

and apply this patch

I uses the github mirror

# we need some firmwares in the kernel
git clone --depth 1 git://git.kernel.org/pub/scm/linux/kernel/git/firmware/linux-firmware.git linux-firmware
# clone the kernel
git clone --branch v6.18 --depth=1 https://github.com/torvalds/linux.git
cd linux
wget https://lore.kernel.org/all/20251120082946.109378-1-hal.feng@starfivetech.com/t.mbox.gz
gzip -d t.mbox.gz
git apply --reject --whitespace=fix t.mbox

Just like U-boot, some files are rejected. But the changes are in the code. (I think double patches are in the t.mbox file). So nothing to do! Config en build the kernel!

Generate a .config file from the the default defconfig for RISC-V.

Change the config file so we don’t need modules.

I add the firmware needed for the Radeon R9 290 and add enable some kernel features.

make ARCH=riscv CROSS_COMPILE=riscv64-linux-gnu- defconfig -j 16
# don't make modules, add everything in the kernel
sed -i -e 's/=m/=y/g' .config
# add some stuff to build
cat >> .config << EOL
# firmware in kernel
CONFIG_EXTRA_FIRMWARE="amdgpu/hawaii_k_smc.bin amdgpu/hawaii_smc.bin amdgpu/hawaii_uvd.bin amdgpu/hawaii_vce.bin amdgpu/hawaii_sdma.bin amdgpu/hawaii_sdma1.bin amdgpu/hawaii_pfp.bin amdgpu/hawaii_me.bin amdgpu/hawaii_ce.bin amdgpu/hawaii_rlc.bin amdgpu/hawaii_mec.bin amdgpu/hawaii_mc.bin radeon/hawaii_pfp.bin radeon/hawaii_me.bin radeon/hawaii_ce.bin radeon/hawaii_mec.bin radeon/hawaii_mc.bin radeon/hawaii_rlc.bin radeon/hawaii_sdma.bin radeon/hawaii_smc.bin radeon/hawaii_k_smc.bin radeon/HAWAII_pfp.bin radeon/HAWAII_me.bin radeon/HAWAII_ce.bin radeon/HAWAII_mec.bin radeon/HAWAII_mc.bin radeon/HAWAII_mc2.bin radeon/HAWAII_rlc.bin radeon/HAWAII_sdma.bin radeon/HAWAII_smc.bin"
CONFIG_EXTRA_FIRMWARE_DIR="../linux-firmware"

# AMDGPU + HDMI sound
CONFIG_DRM_AMDGPU=y
CONFIG_DRM_AMD_DC=y
CONFIG_DRM_AMD_DC_FP=y
CONFIG_SND_DYNAMIC_MINORS=y
CONFIG_SND_MAX_CARDS=32
CONFIG_SND_VMASTER=y
CONFIG_SND_HDA=y
CONFIG_SND_HDA_INTEL=y
CONFIG_SND_HDA_CODEC_HDMI=y
CONFIG_SND_HDA_POWER_SAVE_DEFAULT=0
CONFIG_SND_HDA_CORE=y
CONFIG_SND_HDA_COMPONENT=y
CONFIG_SND_INTEL_NHLT=y
CONFIG_SND_INTEL_DSP_CONFIG=y
CONFIG_SND_INTEL_SOUNDWIRE_ACPI=y

# needed for ubuntu (snap):
CONFIG_SQUASHFS=y
CONFIG_SQUASHFS_FILE_CACHE=y
CONFIG_SQUASHFS_DECOMP_SINGLE=y
CONFIG_SQUASHFS_COMPILE_DECOMP_SINGLE=y
CONFIG_SQUASHFS_ZLIB=y
CONFIG_SQUASHFS_LZ4=y
CONFIG_SQUASHFS_LZO=y
CONFIG_SQUASHFS_XZ=y
CONFIG_SQUASHFS_ZSTD=y
CONFIG_SQUASHFS_FRAGMENT_CACHE_SIZE=3

# needed for Fedora (zram)
CONFIG_BLK_DEV_RAM=y
CONFIG_BLK_DEV_RAM_COUNT=16
CONFIG_BLK_DEV_RAM_SIZE=4096
CONFIG_ZRAM=y
CONFIG_ZRAM_DEF_COMP_LZ4=y
CONFIG_ZRAM_DEF_COMP="lz4"
CONFIG_ZRAM_BACKEND_LZ4=y
CONFIG_ZRAM_BACKEND_LZ4HC=y
CONFIG_ZRAM_BACKEND_ZSTD=y
CONFIG_ZRAM_BACKEND_DEFLATE=y
CONFIG_ZRAM_BACKEND_842=y
CONFIG_ZRAM_BACKEND_LZO=y
CONFIG_ZRAM_MULTI_COMP=y
CONFIG_ZRAM_WRITEBACK=y
CONFIG_ZSMALLOC_STAT=y
CONFIG_ZSMALLOC_CHAIN_SIZE=8
CONFIG_ZRAM_MEMORY_TRACKING=y
EOL
# open menu config and save the config again (default will be set)
make ARCH=riscv CROSS_COMPILE=riscv64-linux-gnu- menuconfig -j 16
# now build
make ARCH=riscv CROSS_COMPILE=riscv64-linux-gnu- -j 16

Create bootable SD-Card

So we now have a compiled U-boot. Time to put it on a SD-Card (partitiontable must be GPT not MBR)

I will create the default 2 SPL/U-Boot partitions and a bigger one so we can put the kernel on it.

On my machine my SD-Card reader is on /dev/sda so:

# create the correct boot partitions to boot (needs sudo)
sudo sgdisk --clear \
    --set-alignment=2 \
    --new=1:4096:8191 --change-name=1:spl --typecode=1:2E54B353-1271-4842-806F-E436D6AF6985 \
    --new=2:8192:16383 --change-name=2:uboot --typecode=2:BC13C2FF-59E6-4262-A352-B275FD6F7172 \
    --new=3:16384:100M --change-name=3:boot --typecode=3:BC13C2FF-59E6-4262-A352-B275FD6F7173 \
    /dev/sda
# format the boot partition
sudo mkfs.ext4 /dev/sda3
# now put the firmware on partition 1 and 2
sudo dd if=u-boot/spl/u-boot-spl.bin.normal.out of=/dev/sda1
sudo dd if=u-boot/u-boot.itb of=/dev/sda2
# now mount and copy the boot files from debian to the 3th partition
mkdir /tmp/mnt
sudo mount /dev/sda3 /tmp/mnt
sudo mkdir /tmp/mnt/starfive
sudo cp linux/arch/riscv/boot/dts/starfive/jh7110s-starfive-visionfive-2-lite.dtb /tmp/mnt/starfive/jh7110s-starfive-visionfive-2-lite.dtb
sudo cp linux/arch/riscv/boot/Image /tmp/mnt/Image
sudo umount /dev/sda3

Run U-Boot and the kernel

Put the SD-Card in the StarFive VisionFive 2 Lite.

Lets Boot!

I have a serial connection to my StarFive VisionFive 2 Lite. (start a serial connection for example with screen -L /dev/ttyUSB0 115200, how to connect to serial see this pdf)

load mmc 0:3 ${kernel_addr_r} /Image
load mmc 0:3 ${fdt_addr_r} /starfive/jh7110s-starfive-visionfive-2-lite.dtb
setenv bootargs ''
# and boot!
booti $kernel_addr_r - $fdt_addr_r
# now it will panic kernel, there is no rootfs!

Boot Debain Trixie Setup

For example, we can start the initramfs from the debian-trixie setup.

# get initramfs for the setup
wget http://ftp.debian.org/debian/dists/trixie/main/installer-riscv64/current/images/netboot/debian-installer/riscv64/initrd.gz
# mount SD-Card to /tmp/mnt
sudo mount /dev/sda3 /tmp/mnt
# copy it to the SD-Card
sudo cp initrd.gz /tmp/mnt/initrd.gz
sudo umount /dev/sda3

Download the debian-trixie-DI-rc1-riscv64-DVD-1.iso, but the debian-trixie-DI-rc1-riscv64-DVD-1.iso on USB. I used balenaEtcher to flash the iso on a USB device.

Put the USB with the iso on an USB-slot and put the SD-Card in the SD-Card slot.

Connect to the board with a serail connection

load mmc 0:3 ${kernel_addr_r} /Image
load mmc 0:3 ${fdt_addr_r} /starfive/jh7110s-starfive-visionfive-2-lite.dtb
load mmc 0:3 ${ramdisk_addr_r} /initrd.gz
# we don't need bootargs
setenv bootargs ''
# and boot!
booti $kernel_addr_r $ramdisk_addr_r:$filesize $fdt_addr_r

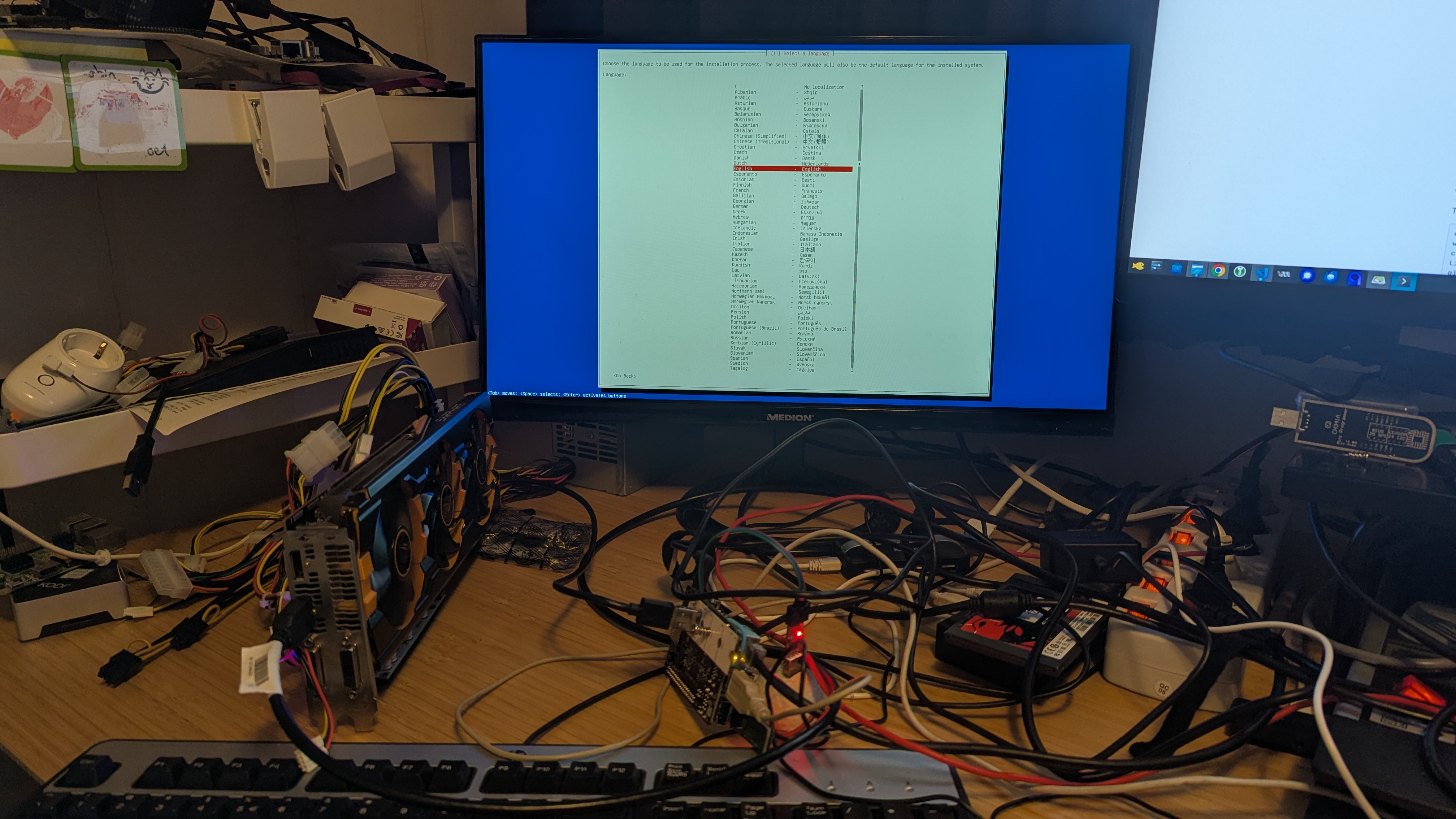

Welcome in the setup of Debian. You kan install Debian on a new partition, for example a new partition 4. After the setup you can boot with:

load mmc 0:3 ${kernel_addr_r} /Image
load mmc 0:3 ${fdt_addr_r} /starfive/jh7110s-starfive-visionfive-2-lite.dtb
load mmc 0:4 ${ramdisk_addr_r} /boot/initrd.img
# we will use partition 4 as rootfs
setenv bootargs 'root=/dev/mmcblk0p4'
# and boot!
booti $kernel_addr_r $ramdisk_addr_r:$filesize $fdt_addr_r
